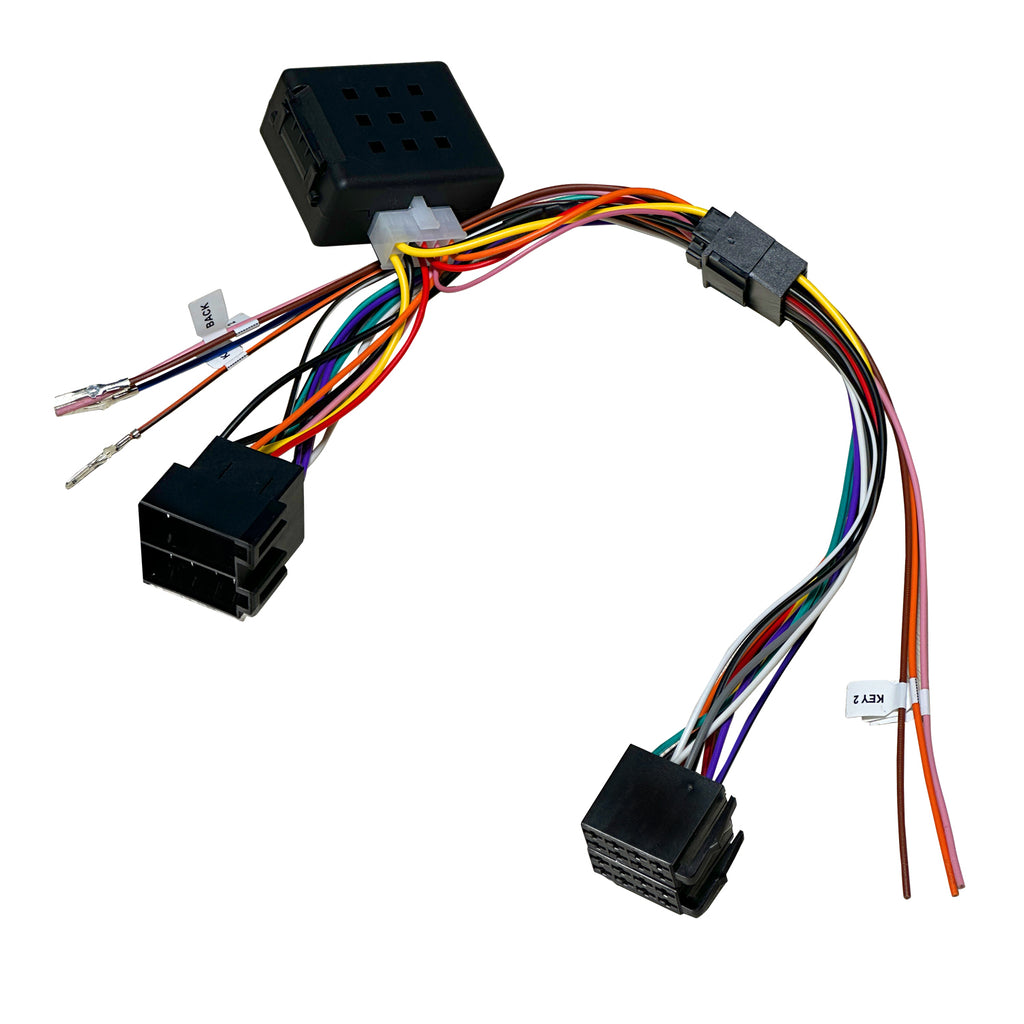

24 Volt DC to 12 Volt DC voltage reducer.
Made speciffically to run your 12v head unit in any 24v application.Plug & Play - Iso to Iso
Input DC voltage range: DC20~30V DC
Output voltage range: 12V~13.8V
Continuous power: 5 Amps
Peak power: 7 Amps
Module dimension, Incl plug - (LxWxH): 55 x 50 x 25mm

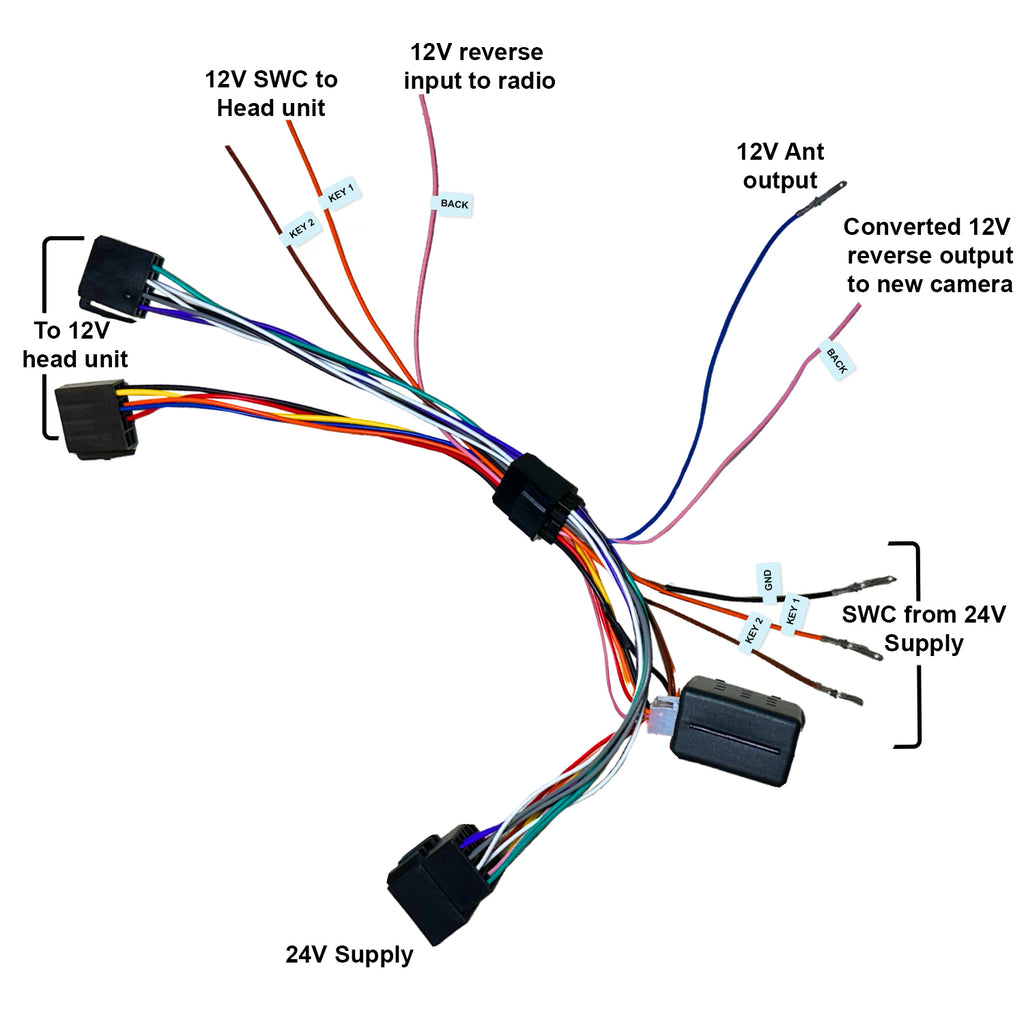

This module converts 5 x 24v inputs INTO 5 x 12v outputs :
- Constant power
- Ingition / ACC
- Ground
- Reverse Signal
- Illumination
NOTE**Relays may be required for any high current applications or when linking any additional items other than just a stand alone headunit.
Installer Note*Ensure 12v Constant and Acc wires are the correct way round, should your radio's harness have quick link swap plugs.
Lets a standard 12V head unit run in a 24V truck or bus
Plug and play ISO to ISO, no cutting the vehicle harness
Converts all five circuits a head unit needs, including reverse signal and illumination
Compact 55 x 50 x 25mm module tucks in behind the head unit
5A continuous with 7A peak capacity
Note: Relays may be required for high current applications or when linking items beyond a standalone head unit. Installers should check the 12V constant and ACC wires are the correct way round where the radio harness has quick link swap plugs.
Input DC voltage range: 20-30V DC
Output voltage range: 12-13.8V
Continuous power: 5 amps
Peak power: 7 amps
Module dimensions including plug: 55 x 50 x 25mm

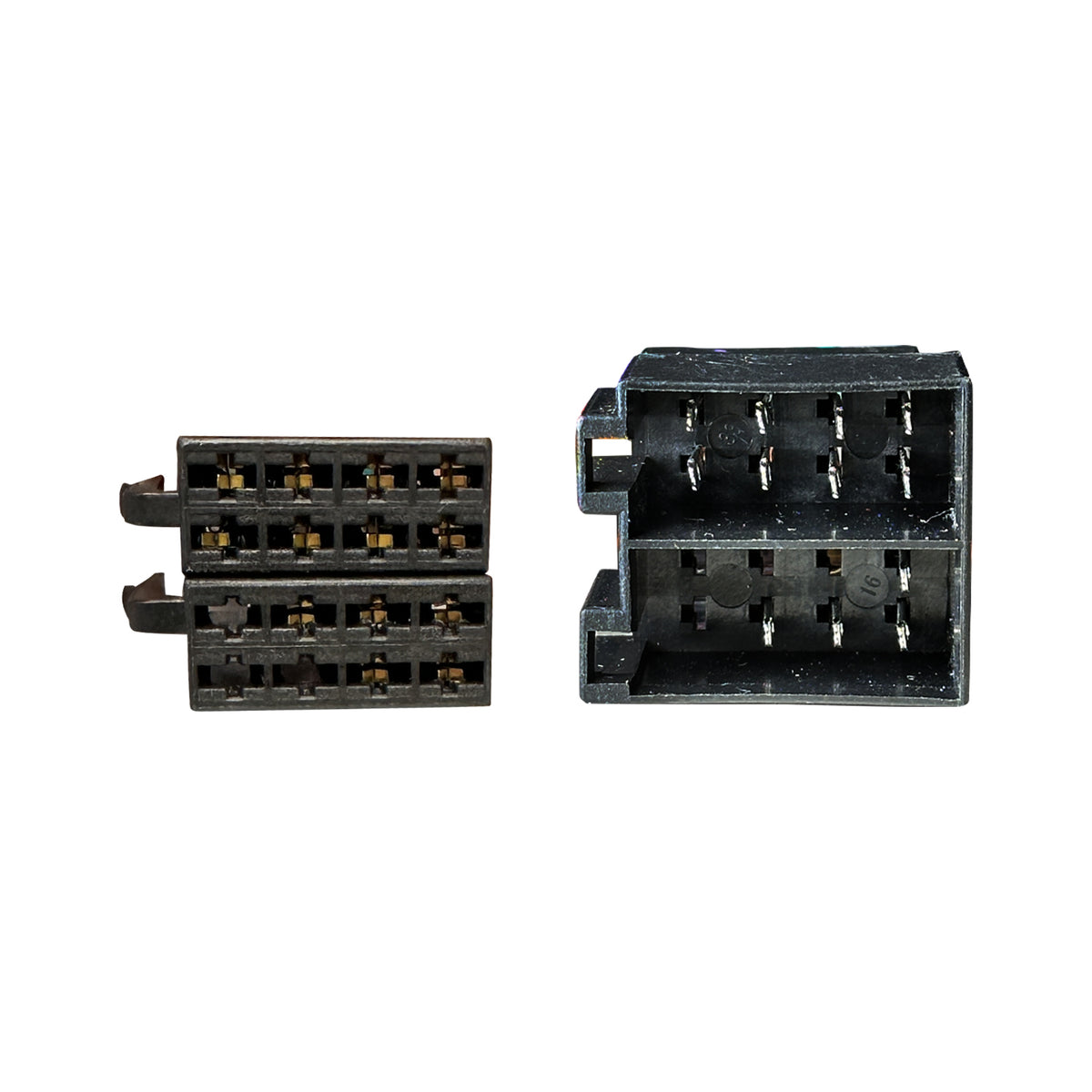

ISO to ISO plugs, plug and play
Converts 5 x 24V inputs to 5 x 12V outputs: constant power, ignition/ACC, ground, reverse signal and illumination
