A new tag has to be memorised into your security system for it to operate - this is called ?code learning?. The coding instructions can be found in your owners manual (which you can download from our website if yours is misplaced) or detailed below. In order to carry out ?code learning? you will need to have either an existing working tag or know the PIN code (if applicable) for your system.
TAG15 - PROGRAMMING TOUCH KEYS (maximum 3):
Disarm the system with existing touch key or by using the PIN code override
Within 20 seconds of disarm, turn the ignition off/on 5 times (OFF-ON, OFF/ON, OFF/ON, OFF/ON, OFF/ON) Leaving in the ON position. The LED will light solid
Touch the receptacle with the 1st touch key for 1 second, LED will flash once
Touch the receptacle with the 2nd touch key for 1 second, LED will flash twice
Touch the receptacle with the 3rd touch key for 1 second, LED will flash three times
The system will complete the programming sequence after the 3rd touch key is programmed or the ignition is turned OFF.
TAG25 - PROGRAMMING TOUCH KEYS (maximum 4):
Disarm the system with an existing tag or by using the PIN override
Open the drivers door and leave open
Turn the ignition ON/OFF 3 times
The LED will flash 3 times (beeper will beep 3 times) to confirm learning mode
Within 10 seconds present the 1st tag to the antenna LED will flash once (beeper will beep once)
Repeat up to 4 tags 2 beeps for 2nd tag, 3 beeps for 3rd tag, etc
Leave system for 10 seconds to complete the learning procedure.

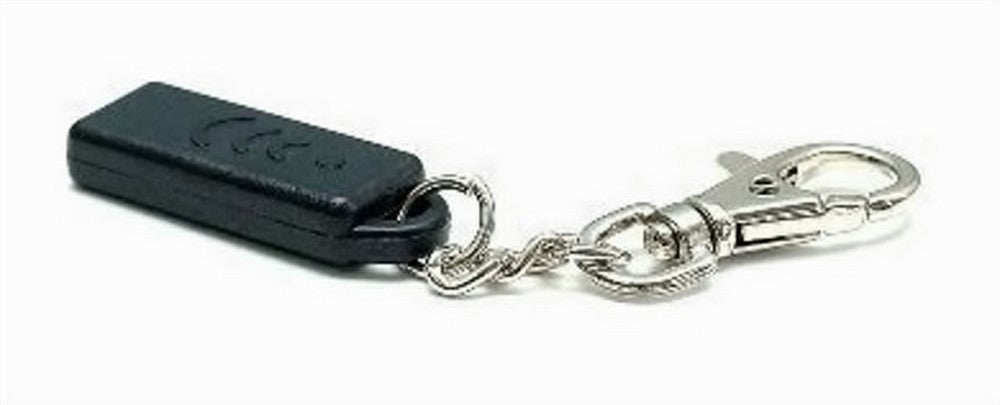

Spare or replacement touch key for an M15 security system
Programmed by code learning, with instructions in the owner's manual
TAG15 systems hold up to three touch keys, TAG25 systems up to four
Note: Code learning requires either an existing working tag or the system PIN code. Owner's manuals are available to download if yours has been misplaced.
Touch key fob for Mongoose M15 systems
TAG15 systems: maximum 3 touch keys
TAG25 systems: maximum 4 tags
Code learning requires an existing working tag or the system PIN code
